High Accuracy RS485 Modbus Out Put Portable Ultrasonic Flow Meter

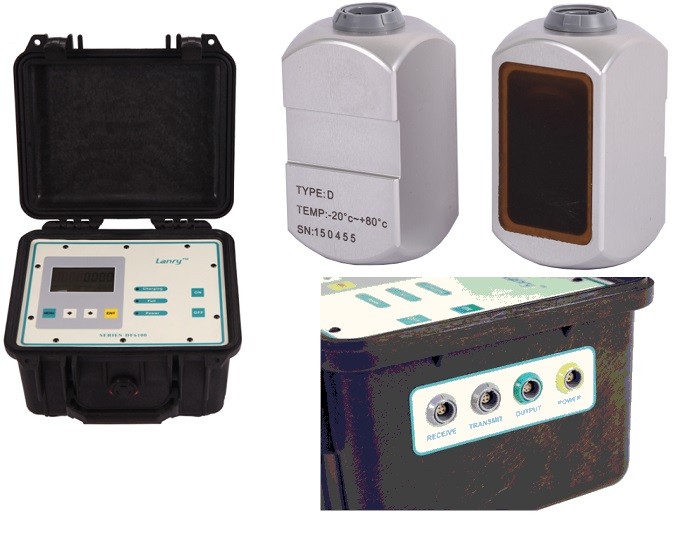

Series DF6100-EP Doppler Portable Ultrasonic Flow Meter is designed
to measure volumetric flow of within closed conduit, the pipe line
must be full of liquids, and there must be a certain amount of air
bubbles or suspended solids in liquid.
The Doppler ultrasonic flow meter can display flow rate and flow
totalizer, etc., and is configured with 4-20mA, OCT outputs.
4-20mA OCT outputs high temp. transducer Portable Doppler
Ultrasonic Flowmeter Features:
1．Excellent low flow rate measurement ability, low to 0.05m/s
2．High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
3．Do not need to shut down the pipe flow when installing the
transducers
4．User-friendly configuration
Technical Parameters:
| Measurement principle | Ultrasonic transit-time difference correlation principle |
| Flow velocity range | 0.01 to 12 m/s, bi-directional |
| Resolution | 0.25mm/s |
| Accuracy | ±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at
rates<0.3 m/s |
| Response time | 0.5s |
| Rate | Rate and Velocity Display |
| Damping of displayed value | 0-99s(selectable by user) |
| Liquid Types Supported | both clean and somewhat dirty liquids with turbidity <10000 ppm |
| Power Supply | AC: 85-265V Up to 50 h with fully charged internal batteries |
| Enclosure type | Portable |
| Units | User Configured (English and Metric) |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Thermal energy | unit GJ,KWh can be optional |
| Communication | 4~20mA,OCT, Relay, RS232, RS485 (Modbus),Logged data |
Data sheet download:DF6100-EP
Doppler Portable flowmeter.pdf
