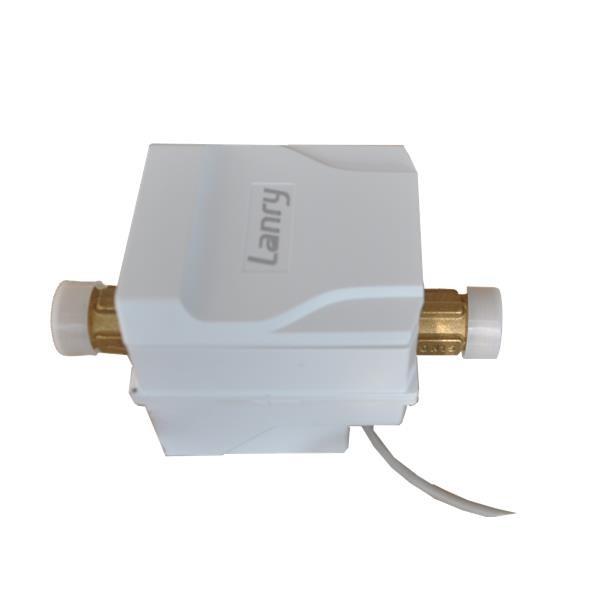

ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection

    Buy cheap ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection from wholesalers

    Buy cheap ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection from wholesalers
    • Buy cheap ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection from wholesalers

    ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection

    Ask Lasest Price
    Brand Name : Lanry
    Model Number : SC7
    Certification : CE
    Price : Negotiable
    Supply Ability : 1000 Unit/Units per Week ultrasonic flow sensor is for OEM also
    • Product Details
    • Company Profile

    ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection

    Class 2 4-20mA/Pulse/RS485/Modbus/M-bus Ultrasonic Clean Water Meter Features:
    1. Installation at any angel, no influence for measurement accuracy.
    2. Low starting flow rate, minimum flow rate 1/3 of traditional water meter.
    3. Support optical, RS485 and wired & wireless M-bus communication interfaces.
    4. Water temperature detection, low temperature alarm.
    5. Ultrasonic signal quality detection.
    6. Photosensitive button, IP 68 design, longtime under water working.
    7. No moving part, no wear, long term stable operation.
    8. Complies to MODBUS RTU and EN 13757 communication protocol.

    Technical Parameter:

    Nominal Diameter DN (mm)1520253240
    Nominal Diameter Q3 (m3/h)2.546.31016
    Min flow rate Q1 (L/h)106.25161025.215.840256440
    Pressure loss class △P6363404040
    Flow arte maximum reading (m3)99999.99999
    Accuracy classClass 2
    Maximum working pressure1.6MPa
    Temperature classT30/T50/T70 optional
    IP gradeIP68
    Power supply3.6V lithium battery
    Battery lifetime≥ 10 years
    Environment & mechanical conditionClass C
    Electromagnetic compatibilityE1
    Heat (cooling) carrierconduit is full charged with water
    Installation modeat any angle

    Dimension:
    Nominal diameter DN (mm)1520253240
    L (mm)165190260260300
    L1 (mm)9797979797
    L2 (mm)255
    H (mm)91
    H1 (mm)31
    W (mm)90
    Meter screw A (inch)G 3/4BG 1BG1 1/4BG1 1/2BG 2B
    Coupling screw B (inch)R1/2R3/4R1R1 1/4R1 1/2
    ISO4064 RS485 Modbus Ultrasonic Flow Metre Water Temperature Detection
    Our Company

    Lanry Instruments is the professional manufacturer of flow detection instruments, provides one package service of re-search and development, production, marketing and after-sales services. Engaged in the production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments (Shanghai) Co., Ltd. and Lanry instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.Adhering to the "high quality, high efficiency " business principles, Lanry instruments takes quality as its life. Sticking to the "integrity innovation, win-win" development principles, we do sincere business and sets sights on technology innovation. Therefore, it is believed that with the top-class product quality, first-class business management and first-ranking customer service, the corporation is supposed to cooperate sincerely,develop mutually and then create brilliance together with customers!
