RS485 UOL Multipath Ultrasonic Open Channel Flow Meter Remote Control

Ask Lasest Price
Brand Name :	Lanry
Model Number :	UOL
Price :	US $400-1,150 / Units
Supply Ability :	1000 Unit/Units per Week Parshall flume flowmeter is for OEM

Add to Cart

Product Details
Company Profile

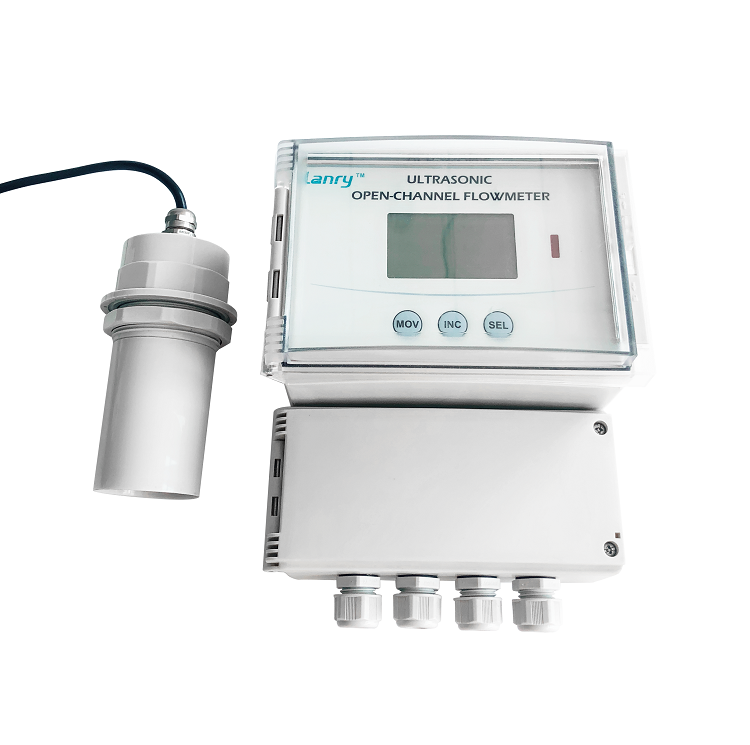

RS485 UOL Multipath Ultrasonic Open Channel Flow Meter Remote Control

Product Description

UOL ultrasonic open channel flow meter can directly display the instantaneous and cumulative flow. With different built-in algorithms, the product supports weirs or notches of different standards in various countries and can be widely used for measurement or monitoring of total water drainage. The measurement result is not affected by the water quality.

Features

Multiple functions, with calculating,control,transmitting and other functions.
With IR remote control, easy to operate.
Match with various weir tank. Right-angle,triangle weir,rectangular weir,groove,parshall flume,throat channel slot.
Accurate measurement , automatic temperature compensation function, automatic,filtering system, strong anti-jamming.
Parshall flume flow meter can provide up to 6 relays, can set the upper limit and lower limit alarm and control(instantaneous flow rate and water level), Can be set high, low and fault alarms.
Accurate measurement in colder regions with electric heat tracing sensor
Large screen display, double line 14 bit LCD liquid crystal display (with backlight),characters of the man-machine interface.
With RS485 serial communication, the standard MODBUS RTU protocol, can communicate with Ethernet device, PC, PLC and DCS.

Application

Parshall flume flow meter TECHNICAL PARAMETERS

Weir & Flume Match: Chinese Standard: Parshall Flume,Triangular Weir,Retangular Weir,Non-throat Flume
ISO Standard: Parshall Flume
USBR Standard: Long-throat Flume(Rectangular Flume,Trapezoid Flume)
Probe: 4m(otherwise other range and anti-corrosion requirements, indicate when you order it)
Accuracy: 0.2% Full span(In air)
Display Resolution: 1mm
Mode of Indication: 14 Digit LCD in 2 rows
Output Current: DC4-20mA/RS485(Modbus standard protocol)/Hart Serial Communication
Output load:0-500Ω
Output Resolution: 0.03% Full span
Relays: 2,4,5,6(5A 250VAC/30VDC)
Baud rate:19200/9600/4800
Parameter set up: 3 induction buttons
Temperature Range: -40 ºC ~75 ºC (LCD:-20 ºC ~+70ºC)
Temperature compensation: The whole range is automatic
Pressure Range: ±0.1MP (press definitely)
Power Supply: DC24V(±5%) 0.2A
AC220V(±20%) 0.1A
Cable: Ø6-12mm
Single Wire Diameter: Ø0.5-1.78mm
Cable Fix: PG13.5/M20
Measure Cycle: 1.5second
Crust Material: ABS
Sensor Material: ABS/PVC/PTFE
Protect Grade: IP67

Parshall flume flow meter Installation drawing:

Certificate

Packing & Delivery

Parshall flume flowmeter

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Delivery

Parshall flume flowmeter standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea canbe optional.
