    Flexible Operation 10000ppm Non Invasive Tri Clamp Flow Meter

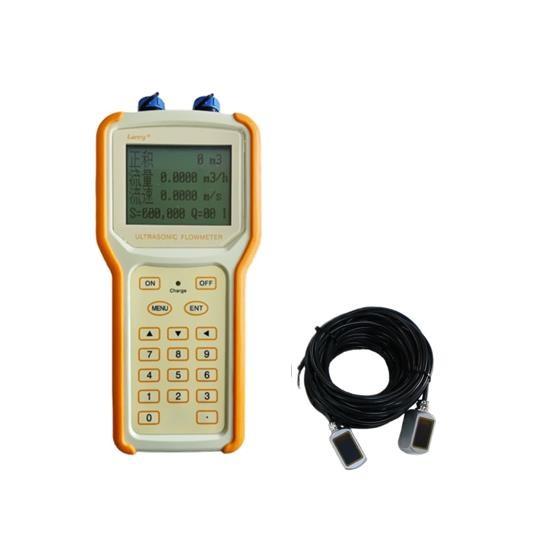

    IP68 Digital Handheld Clamp on Data Storage Ultrasonic Flow Meter TF1100-CH
    The TF1100-CH Hand-held ultrasonic flowmeter is a portable ultrasonic flowmeter with very small size, very light weight and true meaning in China. This product has the characteristics of automatic data storage, high measurement accuracy, full Chinese display, and flexible operation. Once the product is launched, it has been favored by customers at home and abroad and has been exported to Japan, South Korea, Europe, America and the Middle East, and has been well received by domestic and foreign customers. Mainly used in the flow measurement of industrial pipeline medium fluid, widely used in environmental protection, petrochemical, metallurgy, papermaking, food, pharmaceutical and other industries.

    IP68 Digital Handheld Clamp on Data Storage Ultrasonic Flow Meter TF1100-CH​​ Features:


    • 14 hours battery (rechargeable), back-lit 4 lines display.
    • Data logger function.
    • Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.
    • Non-invasive transducers.
    • Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

    Specifications: Transmitter

    Measurement principleUltrasonic transit-time difference correlation principle
    Flow velocity range0.01 to 12 m/s, bi-directional
    Response time0.5s
    Resolution0.25mm/s
    Sensitivity0.003m/s
    Repeatability0.2% of reading
    Damping of displayed value0-99s(selectable by user)
    Liquid Types Supportedboth clean and somewhat dirty liquids with turbidity <10000 ppm
    Power SupplyAC: 85-265V Up to 14 h with fully charged internal batteries
    Degree of protectionIP65 according to EN60529
    Enclosure typeHandheld, Portable
    Housing materialABS( UL 94HB)
    Operating temperature-20℃ to +60℃
    UnitsUser Configured (English and Metric)
    RateRate and Velocity Display


    Specifications: Transducer

    Degree of protectionIP65 according to EN60529.(IP67 or IP68 Upon request)
    Pipe diameter range20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
    Suited Liquid TemperatureStd. Temp.: -35℃~85℃ for short periods up to 120℃
    High Temp.: -35℃~200℃ for short periods up to 250℃
    Transducer SizeType S 48(h)*28(w)*28(d)mm
    Type M 60(h)*34(w)*33(d)mm
    Type L 80(h)*40(w)*42(d)mm
    Material of transducerAluminum for standard temp. sensor, and peek for high temp. sensor
    Cable LengthStd: 5m


    Data sheet download TF1100-CH transit-time handheld ultrasonic flowmet...
    Manual Download TF1100-CH transit-time handheld flowmeter Manual.p...

    Dimensional Sketches

    Transmitter:
    Flexible Operation 10000ppm Non Invasive Tri Clamp Flow Meter

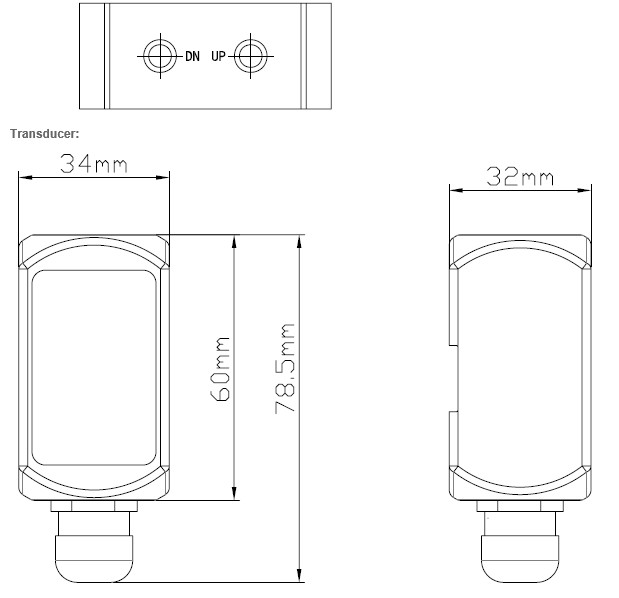

    Transducer:

    Flexible Operation 10000ppm Non Invasive Tri Clamp Flow Meter
