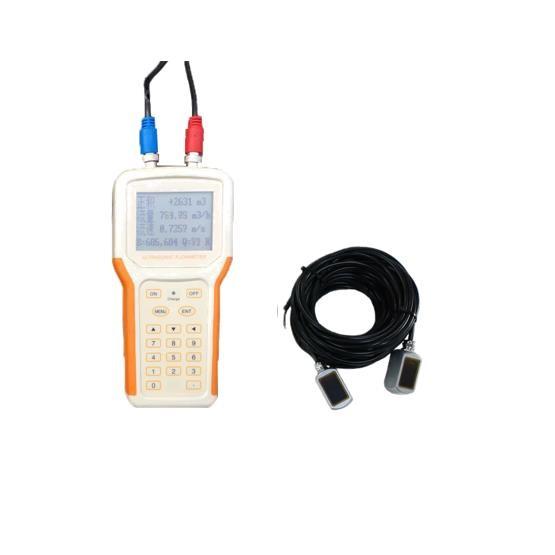

    EN60529 Refrigeration 12m/S Handheld Ultrasonic Flow Meter

    Ask Lasest Price
    Brand Name : Lanry
    Model Number : TF1100-CH
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    EN60529 Refrigeration 12m/S Handheld Ultrasonic Flow Meter

    1% Accuracy Data Storage IP68 Clamp on Ultrasonic Flow Meter​ Applications:
    Water and waste water industry - hot water, cooling water,
    potable water, sea water etc.)
    Petrochemical industry
    Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
    Refrigeration and air conditioning systems
    Food , beverage and pharmaceutical industry
    Power supply- nuclear power plants, thermal & hydropower
    plants), heat energy boiler feed water.etc
    Metallurgy and mining applications
    Mechanical engineering and plant engineering-pipeline leak
    detection, inspection, tracking and collection.
    General
    Service and maintenance
    Replacement of defective devices
    Support of commissioning process and
    installation
    Performance and efficiency measurement
    - Evaluation and assessments
    - Capacity measurement of pumps
    - Monitoring of regulating valves
    Energy efficiency audits

    1% Accuracy Data Storage IP68 Clamp on Ultrasonic Flow Meter Features:

    • 14 hours battery (rechargeable), back-lit 4 lines display.
    • Data logger function.
    • Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.
    • Non-invasive transducers.
    • Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

    Specifications: Transmitter

    Measurement principleUltrasonic transit-time difference correlation principle
    Flow velocity range0.01 to 12 m/s, bi-directional
    Accuracy±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
    Response time0.5s
    Resolution0.25mm/s
    Sensitivity0.003m/s
    Repeatability0.2% of reading
    Damping of displayed value0-99s(selectable by user)
    Liquid Types Supportedboth clean and somewhat dirty liquids with turbidity <10000 ppm
    Power SupplyAC: 85-265V Up to 14 h with fully charged internal batteries
    Degree of protectionIP65 according to EN60529
    Enclosure typeHandheld, Portable
    Housing materialABS( UL 94HB)
    Operating temperature-20℃ to +60℃
    Display4 line×16 English letters LCD graphic display, backlit
    UnitsUser Configured (English and Metric)
    RateRate and Velocity Display


    Specifications: Transducer

    Degree of protectionIP65 according to EN60529.(IP67 or IP68 Upon request)
    Pipe diameter range20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
    Suited Liquid TemperatureStd. Temp.: -35℃~85℃ for short periods up to 120℃
    High Temp.: -35℃~200℃ for short periods up to 250℃
    Transducer SizeType S 48(h)*28(w)*28(d)mm
    Type M 60(h)*34(w)*33(d)mm
    Type L 80(h)*40(w)*42(d)mm
    Material of transducerAluminum for standard temp. sensor, and peek for high temp. sensor
    Cable LengthStd: 5m


    Data sheet download TF1100-CH transit-time handheld ultrasonic flowmet...
    Manual Download TF1100-CH transit-time handheld flowmeter Manual.p...

    Dimensional Sketches

    Transmitter:
    EN60529 Refrigeration 12m/S Handheld Ultrasonic Flow Meter
    Transducer:

    EN60529 Refrigeration 12m/S Handheld Ultrasonic Flow Meter

    Company Profile



    Lanry Instruments is the professional manufacturer of flow measurement instruments, provides one package service of research and development, production, marketing and after -sales services. Engaged in the production of flow meters more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays a solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments(Shanghai) Co.,Ltd. and Lanry Instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.


    Packing & Delivery


    With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.
    EN60529 Refrigeration 12m/S Handheld Ultrasonic Flow MeterEN60529 Refrigeration 12m/S Handheld Ultrasonic Flow MeterEN60529 Refrigeration 12m/S Handheld Ultrasonic Flow Meter

    Delivery

    Clamp On Handheld Ultrasonic Flow Meter TF1100-CH for water and chilled water application
    Standard meter: 3-7 days
    Special meter: pls contact us
    Express, by air, by sea can be optional.
