0.5s Quick Response Modbus Thermal Energy Transit Time Flow Meter

Ask Lasest Price
Brand Name :	Lanry
Model Number :	TF1100-EC
Certification :	CE
Price :	Negotiable

Add to Cart

Product Details
Company Profile

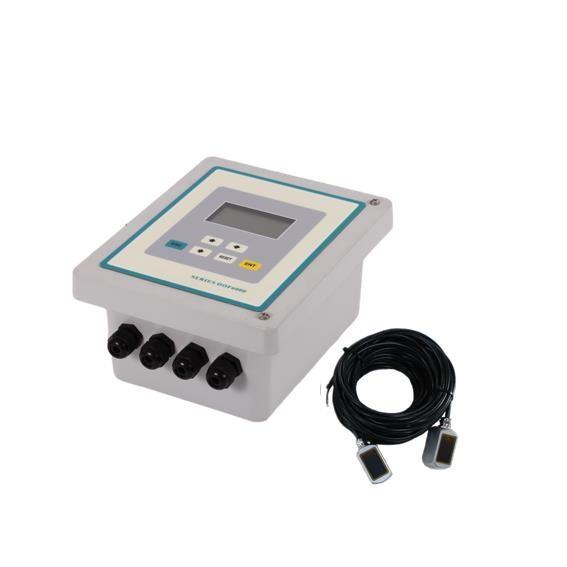

0.5s Quick Response Modbus Thermal Energy Transit Time Flow Meter

1%R Ultrasonic Thermal Energy Meter With Clamp-on Aluminum Sensor

1%R Ultrasonic Thermal Energy Meter With Clamp-on Aluminum Sensor is applied to each type of liquid on-line long time measurement, the host and sensor installation respectively, the host can be installed in indoor, instrument cabinets, instrument panel, sensors installed on the measuring pipe, the host and sensor with ultrasonic flowmeter is special cable connection, the flow measurement can be realized, with temperature sensor heat measurement can be realized. Aluminum sensors are more suitable for specific environments and are more durable , 1%R accuracy is very stable. And widely used for water supply, non conductive liquid such as the distilled water, food oil &light oil, boiler fuel oil engine for diesel measurement, and air conditioner system to measure the flow & heat, food and beverage, pharmaceutical, ballast water, fuel consumption and other processes on-board ships,etc.

Specifications :Transmitter

Resonse time	0.5s
Flow velocity range	0.01 to 12 m/s, bi-directional
Resolution	0.25mm/s
Repeatability	0.2% of reading
Sensitivity	0.003m/s
Accuracy	±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Damping of displayed value	0-99s(selectable by user)
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply	AC: 85-265V DC: 24V/500mA
Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-20℃ to +60℃
Display	4 line×16 English letters LCD graphic display, backlit
Communication	4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data
Security	Keypad lockout, system lockout
Weight	2.4kg

Specifications :Transducer

Degree of protection	IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃ for short periods up to 120℃
Suited Liquid Temperature	High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range	20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
Transducer Size	Type S 52(h)28(w)26(d)mm
	Type M 60(h)34(w)32(d)mm
	Type L 80(h)40(w)42(d)mm
Material of transducer	Aluminium for standard temp. sensor,and peek for high temp. sensor
Cable Length	Std: 10m

Datasheet Download TF1100-EC transit-time wall-mounted ultrasonic flo...

Manual Download TF-1100-EC&EI heat meter Manual.pdf

Ultrasonic Flow Meter Clamp On Thermal Energy Meter With Aluminum Sensor Features:

1.High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
2.Do not need to shut down the pipe flow when installing the transducers
3.4-20mA, Relay and OCT outputs
4.Accuracy: ±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s

Ultrasonic Flow Meter Clamp On Thermal Energy Meter With Aluminum Sensor Application

General
● Service and maintenance

● Energy efficiency audits

● Support of commissioning process and installation

● Replacement of defective devices

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

0.5s Quick Response Modbus Thermal Energy Transit Time Flow Meter

Delivery

High Accuracy Low Cost Wall Mount Flow Meter standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
