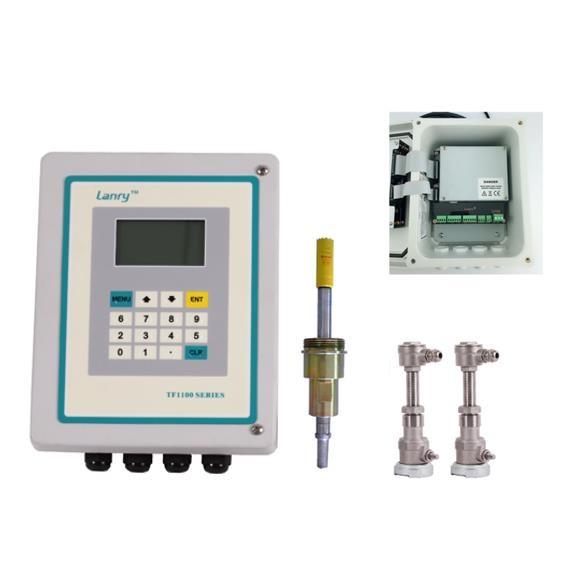

IP68 Fiberglass Housing Insertion Transit Time Ultrasonic Flow Meter

Ask Lasest Price
Brand Name :	Lanry
Model Number :	TF1100-EI
Certification :	CE
Price :	Negotiable
Supply Ability :	100unit/week

Add to Cart

Product Details
Company Profile

IP68 Fiberglass Housing Insertion Transit Time Ultrasonic Flow Meter

 CE Insertion Ultrasonic Industral Flow Meter For Cement Pipe

TF1100-EI insertion transit-time ultrasonic flow meter utilizes transit-time principle. It effectively solves clamp-on flow meter cannot accurately measure while scaling pipe and non-conductive media. Insertion transducer with stop valve is unnecessary to stop flow or cut pipe for installation and maintenance. For unable directly drilling pipe or not smooth surface pipe, we mount hoops while installation. Plus, select thermal energy measuring function to achieve completely energy analysis. It is widely applied in processing monitoring, water balance test, district heating balance test, energy efficiency monitoring as easy installation and simple operation advantages.

 Speciications:Transmitter

Measurement principle	Ultrasonic transit-time difference correlation principle
Resolution	0.25mm/s
Repeatability	0.2% of reading
Accuracy	±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Sensitivity	0.003m/s
Damping of displayed value	0-99s(selectable by user)
Response time	0.5s
Power Supply	AC: 85-265V DC: 24V/500mA
Flow velocity range	0.01 to 12 m/s, bi-directional
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-20℃ to +60℃
Housing material	Fiberglass
Display	4 line×16 English letters LCD graphic display, backlit
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Thermal energy	unit GJ,KWh can be optional
Communication	4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data
Security	Keypad lockout, system lockout

 Transducer

Degree of protection	IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃
Suited Liquid Temperature	High Temp.: -35℃~150℃
Material of transducer	Stainless Steel
Transducer Size	Type S Φ58*199mm
Pipe diameter range	DN65-6000
Temperature Sensor	Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%
Cable Length	Std: 10m

Datasheet Download TF1100-EI transit-time insertion ultrasonic flowm...

Manual Download TF-1100-EC&EI heat meter Manual.pdf

 CE Insertion Ultrasonic Industral Flow Meter For Cement Pipe   Features:

1. Spool-piece transducer for best accuracy and better long-term stability.

2. Hot-tapped installation, no pipe line flow interrupted.

3. The heat measurement function by configuring with paired temperature sensors.

4. No moving parts, no pressure drop, no maintenance.

5. High temp. Insertion transducers are suitable for high temperature of -35℃~150℃.

6. Wide bi-directional Flow range of 0.03 to 36 m/s, and wide range of pipe sizes from DN65 to DN6000.

 CE Insertion Ultrasonic Industral Flow Meter For Cement Pipe   Application

General
● Replacement of defective devices
● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves
● Energy efficiency audits
● Support of commissioning process and installation

Packing & Delivery

Inserted Type Ultrasonic Flow Meter With 4-20mA Output for clean liquid application

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

Delivery

Inserted Type Ultrasonic Flow Meter With 4-20mA Output
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
