High Precision LCD Doppler Ultrasonic Flowmeter For Petrochemical
Industry

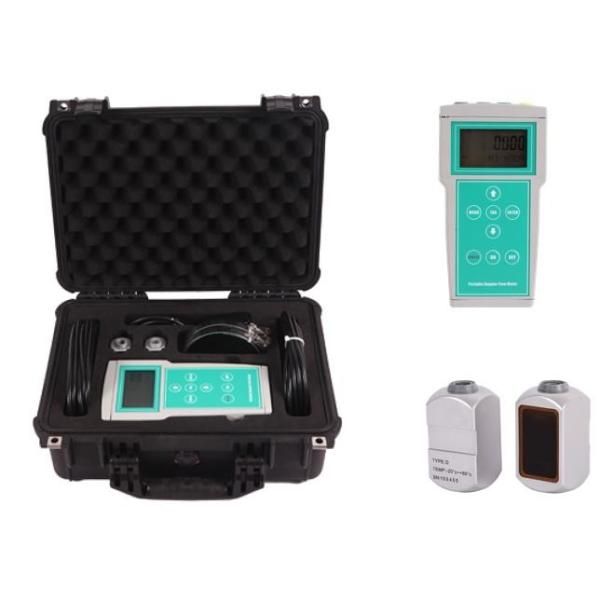

DF6100-EH handheld Doppler ultrasonic flowmeter is used to measure
the volume flow of liquid with a certain amount of bubbles or
suspended solids. The pipeline must be filled with liquid and
closed. The external clamp sensor is closely attached to the outer
wall of the pipeline through a couplant. The iron pipe is made of
uniform and dense material, which is conducive to the transmission
of ultrasonic waves, reduces interference, and makes the
measurement data more accurate and reliable.
High Precision LCD Doppler Ultrasonic Flowmeter For Petrochemical
Industry Features:
- Accuracy: 2.0% Calibrated span
- User-friendly configuration
- Rechargeable battery can work up to 14 hours
- It is suitable for pipe sizes ranging from 40 to 4000mm
- Excellent low flow rate measurement ability, low to 0.05m/s
- A wide range of flow measurement, high flow rate can reach 12m/s
- High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
Technical Parameters:
Specifications: Transmitter
| Measurement principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Repeatability | 0.2% of reading |
| Communication | 4-20mA,relays for Totalizer and alarm output |
| Accuracy | 0.5% -- 2.0% F.S. |
| Flow Velocity Range | 0.05- 12 m/s |
| Response time | 2-60s for optional |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the
reflectors are larger than 100 micron. |
| Power Supply | AC: 85-265V |
| Operating temperature | -20℃ to +60℃ |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total
(resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
Specifications: Transducer:
| Transducers Type | Clamp-on |
| Degree of protection | IP65. IP67 or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
| High Temp.: -35℃~200℃ for short periods up to 250℃ |
| Transducer Size | 60(h)*34(w)*33(d)mm |
| Material of transducer | Aluminum for standard temp. sensor,and peek for high temp. sensor |
| Pipe diameter range | 40-4000 mm |
| Cable Length | Std: 5m |
Company profile
Lanry Instruments is the professional manufacturer of flow
detection instruments, provides one package service of re-search
and development, production, marketing and after-sales services.
Engaged in the production of flow instruments more than 20 years,
Lanry has been equipped with advanced design capabilities and piled
up a wealth of field application experience, which lays solid
foundation for the commitment to the promotion and innovation of
high-tech system solution. The corporation has devoted to the
production of flow measurement instruments with superior
performance, high stability and strong reliability.
Packing for Transportation
With years of export experience along with excellent quality,
advanced services and competitive prices, Lanry has won numerous
customers' trust and support all over the world.
Delivery by Express
Smart oil level gauge Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea canbe optional.
