Clamp On Doppler Ultrasonic Flow Meter With Aluminum Sensor

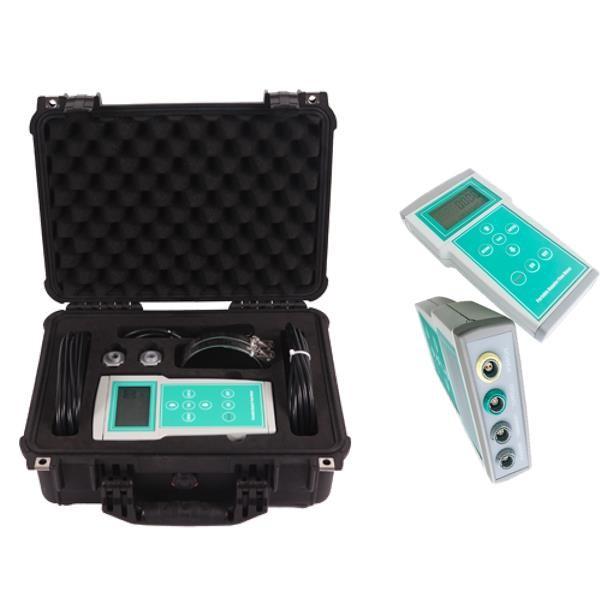

Lanry DF6100-EH Handheld Ultrasonic Flow Meter is a Doppler
ultrasonic flowmeter with wide applications.
With features of small size, portable, rechargeable battery
powered, and universal power supply, Lanry DF6100-EH work for
measuring Liquid Flow in tubes anytime anywhere.
By using the advanced digital technique and intelligent adaptive
acoustic technology, the measurement stability is more prominent.
Meanwhile, it adopts the sound focus patent technology to make the
quality of signal reception more obviously strengthen in
continuously measurement.
Clamp On Doppler Ultrasonic Flow Meter With Aluminum Sensor Features:
- Accuracy: 2.0% Calibrated span
- It is suitable for pipe sizes ranging from 40 to 4000mm
- For dirty liquids, a certain amount of air bubbles or suspended
solids shall be contained
- Excellent low flow rate measurement ability, low to 0.05m/s
- A wide range of flow measurement, high flow rate can reach 12m/s
Technical Parameters:
Specifications: Transmitter
| Measurement principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Repeatability | 0.2% of reading |
| Accuracy | 0.5% -- 2.0% F.S. |
| Flow Velocity Range | 0.05- 12 m/s |
| Response time | 2-60s for optional |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the
reflectors are larger than 100 micron. |
| Power Supply | AC: 85-265V |
| Operating temperature | -20℃ to +60℃ |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total
(resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Communication | 4-20mA,relays for Totalizer and alarm output |
Specifications: Transducer:
| Transducers Type | Clamp-on |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
| High Temp.: -35℃~200℃ for short periods up to 250℃ |
| Transducer Size | 60(h)*34(w)*33(d)mm |
| Degree of protection | IP65. IP67 or IP68 according to EN60529 |
| Material of transducer | Aluminum for standard temp. sensor,and peek for high temp. sensor |
| Pipe diameter range | 40-4000 mm |
| Cable Length | Std: 5m |
Company profile
Lanry Instruments is the professional manufacturer of flow
detection instruments, provides one package service of re-search
and development, production, marketing and after-sales services.
Engaged in the production of flow instruments more than 20 years,
Lanry has been equipped with advanced design capabilities and piled
up a wealth of field application experience, which lays solid
foundation for the commitment to the promotion and innovation of
high-tech system solution. The corporation has devoted to the
production of flow measurement instruments with superior
performance, high stability and strong reliability.
Packing for Transportation
With years of export experience along with excellent quality,
advanced services and competitive prices, Lanry has won numerous
customers' trust and support all over the world.
Delivery by Express
Smart oil level gauge Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea canbe optional.
