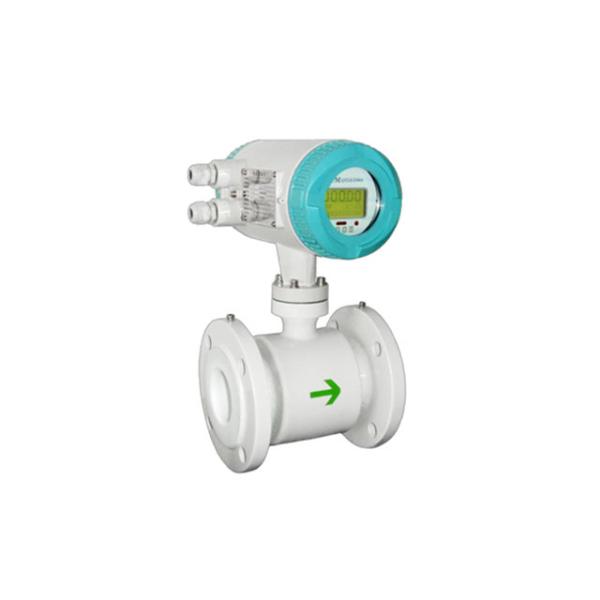

DN3-DN3000mm Flange Connection Electromagnetic Flowmeter​:

Electromagnetic flow meter consists of sensors and converters in two parts. The product is based on Faraday's law of
electromagnetic induction, used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow,
In addition to measuring the general volume of conductive liquid flow, but also can be used to measure strong acid,
alkali and other strong corrosive liquids and mud, pulp, pulp and other liquid-solid two-phase suspension of uniform
volume flow.

DN3-DN3000mm Flange Connection Electromagnetic Flowmeter Features:

♦ Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃

♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.

♦ Dual frequency excitation and stable zero point.
♦ Precision coil winding technology,makes magnetic field more uniform.
♦ High protection grade,IP65,IP68
♦ No moving parts,no pressure loss.
♦ High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s.

DN3-DN3000mm Flange Connection Electromagnetic Flowmeter​ specification:

Size : DN3-DN3000mm (1/8”~120”)
Accuracy : ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s
Conductivity : Normal liquid >20 μS/cm,Slurry liquid>5 μS/cm
Protection Grade : IP65, IP68
Electrode : SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinoiridium
Power Supply : AC85~250V, DC20V~36V
Power Consumption :<20W
Communication : RS485/Modbus, Hart, Profitbus
Display : LC Display,128X128mm Three lines 4 internal push buttons
Ambient Temperature: -20℃~60℃
Relative Humidity : 5%~95%
Liner Material : Neoprene(Rubber); PTFE; PFA;F46; Polyurethane
Velocity : 0.1 m/s ~ 15 m/s
Explosion-proof : Exd IIB T6 Gb
Nominal Pressure : 4.0 MPa (DN3-DN150)
1.6 MPa (DN200-DN600)
1.0 MPa (DN700-DN1000)
0.6 MPa (DN1200-DN3000)
Frequency Output : 1~5000 Hz
Language : English,Chinese
Flange Standard : EN1092-1,

PN10,PN16,PN25,PN40
ANSI BS16.5 Class 150,300,600
JIS2220 10K,20K,40
AS2129 Table D,Table E
AS4087 PN16,PN21,PN35
Exciting Current : 125mA, 187mA, 250mA
Exciting Frequency : 3.12Hz, 4.16Hz, 6.25Hz,12.5Hz, 25Hz, 30Hz
Material:
Measuring Tube : Stainless Steel 304
Flange : Carbon Steel (standard)

Straight Pipe : Inlet Path ≥ 10D
Outlet Path ≥ 5D
Signal Output : 4~20 mA,pulse
