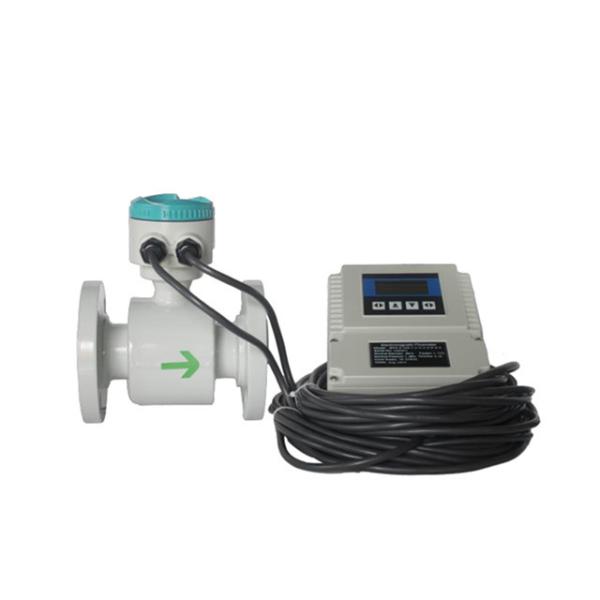

Divided Flange Connection Electromagnetic Flowmeter​:

Divided electromagnetic flowmeter is composed of two parts: sensor and converter. This product is based on Faraday’s law of electromagnetic induction, which is used to measure the conductance of a conductive liquid flowing greater than 20°S/cm volume.
In addition to measuring the volume flow of general conductive liquids, it can also be used to measure the uniform volume flow of strong acid, strong alkali and other strong corrosive liquids and slurry, pulp, pulp and other liquid-solid two-phase suspensions.

Divided Flange Connection Electromagnetic Flowmeter​ Features:

♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.

♦ Dual frequency excitation and stable zero point.
♦ Precision coil winding technology,makes magnetic field more uniform.
♦ High protection grade,IP65,IP68
♦ No moving parts,no pressure loss.
♦ High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s.
♦ Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃

Divided Flange Connection Electromagnetic Flowmeter​ specification:

Size : DN3-DN3000mm (1/8”~120”)
Accuracy : ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s
Conductivity : Normal liquid >20 μS/cm,Slurry liquid>5 μS/cm
Protection Grade : IP65, IP68
Electrode : SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinoiridium
Power Supply : AC85~250V, DC20V~36V
Power Consumption :<20W
Communication : RS485/Modbus, Hart, Profitbus
Display : LC Display,128X128mm Three lines 4 internal push buttons
Ambient Temperature: -20℃~60℃
Relative Humidity : 5%~95%
Liner Material : Neoprene(Rubber); PTFE; PFA;F46; Polyurethane
Velocity : 0.1 m/s ~ 15 m/s
Explosion-proof : Exd IIB T6 Gb

Material:
Measuring Tube : Stainless Steel 304
Flange : Carbon Steel (standard)

Straight Pipe : Inlet Path ≥ 10D
Outlet Path ≥ 5D
Signal Output : 4~20 mA,pulse

Nominal Pressure : 4.0 MPa (DN3-DN150)
1.6 MPa (DN200-DN600)
1.0 MPa (DN700-DN1000)
0.6 MPa (DN1200-DN3000)
Frequency Output : 1~5000 Hz
Language : English,Chinese
Flange Standard : EN1092-1,

PN10,PN16,PN25,PN40
ANSI BS16.5 Class 150,300,600
JIS2220 10K,20K,40
AS2129 Table D,Table E
AS4087 PN16,PN21,PN35
Exciting Current : 125mA, 187mA, 250mA
Exciting Frequency : 3.12Hz, 4.16Hz, 6.25Hz,12.5Hz, 25Hz, 30Hz
