    Lanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow Meter

    Ask Lasest Price
    Brand Name : Lanry
    Model Number : TF1100-CH
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

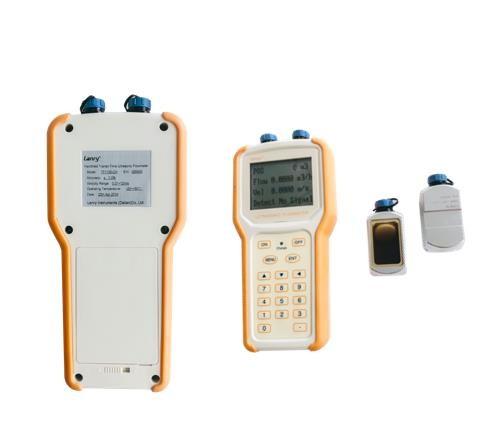

    Lanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow Meter

    Handheld Ultrasonic Flow Meter TF1100-CH For Sus304 Pipe

    Handheld Ultrasonic Flow Meter TF1100-CH For Sus304 Pipe works on the principle of transit-time, the size of the host machine is 212*100*36mm. During field measurement, it can be operated by hand and data can be obtained.
    It is suitable for measuring relatively pure liquids in closed full pipes, and is widely used in the fields of water supply and drainage, air conditioning and heating, building energy conservation, petrochemical industry, metallurgy and so on. . .

    Handheld Ultrasonic Flow Meter TF1100-CH For Sus304 Pipe Features


    1. Non-invasive transducers.
    2. Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.
    3. Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.
    4. Lightweight and easily transportable in box.


    Specifications: Transmitter

    Measurement principleUltrasonic transit-time difference correlation principle
    Accuracy±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
    Response time0.5s
    Flow velocity range0.01 to 12 m/s, bi-directional
    Resolution0.25mm/s
    Sensitivity0.003m/s
    Repeatability0.2% of reading
    Damping of displayed value0-99s(selectable by user)
    Liquid Types Supportedboth clean and somewhat dirty liquids with turbidity <10000 ppm
    Power SupplyAC: 85-265V Up to 14 h with fully charged internal batteries
    Degree of protectionIP65 according to EN60529
    Enclosure typeHandheld, Portable
    Housing materialABS( UL 94HB)
    Display4 line×16 English letters LCD graphic display, backlit
    Operating temperature-20℃ to +60℃
    UnitsUser Configured (English and Metric)
    RateRate and Velocity Display


    Specifications: Transducer

    Degree of protectionIP65 according to EN60529.(IP67 or IP68 Upon request)
    Pipe diameter range20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
    Suited Liquid TemperatureStd. Temp.: -35℃~85℃ for short periods up to 120℃
    High Temp.: -35℃~200℃ for short periods up to 250℃
    Transducer SizeType S 48(h)*28(w)*28(d)mm
    Type M 60(h)*34(w)*33(d)mm
    Type L 80(h)*40(w)*42(d)mm
    Material of transducerAluminum for standard temp. sensor, and peek for high temp. sensor
    Cable LengthStd: 5m


    Data sheet download TF1100-CH transit-time handheld ultrasonic flowmet...
    Manual Download TF1100-CH transit-time handheld flowmeter Manual.p...

    Dimensional Sketches

    Transmitter:
    Lanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow Meter
    Transducer:

    Lanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow Meter

    Packing & Delivery


    With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.
    Lanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow MeterLanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow MeterLanry 0.25mm Resolution SUS304 Pipe Portable Clamp On Flow Meter

    Delivery

    Clamp On Handheld Ultrasonic Flow Meter TF1100-CH for water and chilled water application
    Standard meter: 3-7 days
    Special meter: pls contact us
    Express, by air, by sea can be optional.
