IP68 High Accuracy Double Channels Ultrasonic Water Meter

Ask Lasest Price
Brand Name :	Lanry
Model Number :	Ultrawater
Certification :	CE
Price :	Negotiation
Supply Ability :	1000 Unit/Units per Week MID Approved Modbus Digital Water Meter

Add to Cart

Product Details
Company Profile

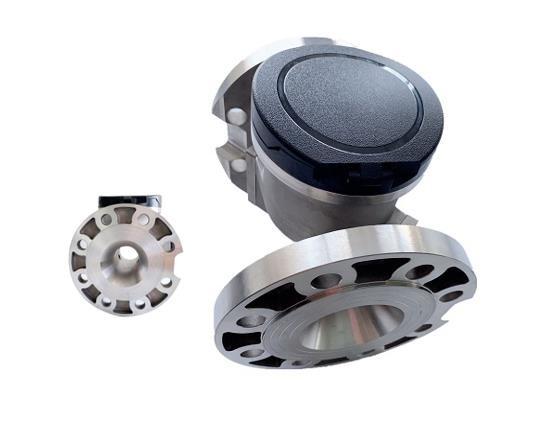

IP68 High Accuracy Double Channels Ultrasonic Water Meter

IP68 High Accuracy Double Channels Ultrasonic Water Meter

IP68 high-precision dual-channel ultrasonic water meter ultrasonic water meter is using ultrasonic time difference principle, adopt industrial electronic components manufacturing and become fully electronic water meter compared with mechanical water meter with high precision, good reliability, range than wide, long service life, no moving parts, do not need to set parameters, characteristics of arbitrary Angle to install IP68 design, with the highest level of protection, can be used in harsh environment, the highest level of accuracy for level 1, high precision to ensure accurate reading.

IP68 High Accuracy Double Channels Ultrasonic Water Meter Features:

1. With stainless steel (SUS304) body.
2. No moving parts. Excellent long-term stability and reliability.
3. Can measure and storage both forward dlow and backflow.

4. Standard output is RS485, M-bus, Lora, NB-IoT, 4-20mA, Pulse, GPRS can be optional.
5. Double channels ultrasonic transit-time sensor for High accuracy and reliable operation.
6. IP 68 design, longtime under water working.

Technical Parameter:

Types	Ultraflow
Flow rate m³/h	DN 50-2″	DN 65-2.5″	DN 80-3″	DN 100-4″	DN 150-6″	DN 200-8″	DN 250-10″	DN 300-12″
Q4	50	50	80	125	313	500	1250	1250
Q3	40	40	63	100	250	400	1000	1000
Q2	0.128	0.128	0.2	0.32	0.8	1.28	3.2	3.2
Q1	0.08	0.08	0.125	0.2	0.5	0.8	2	2
R-Q3/Q1	500	500	500	500	500	500	500	500
Max. Working Pressure	1.6Mpa
Pressure loss	△P16
Temperature class	T50
Work environment	Temperature: -25℃～55℃, Humidity: ≤100%(RH)
Electromagnetic compatibility	E2
Display	9-bit LCD display. Can display totailazer, Instant flow, error alarm, flow direction, output
Data Storage	Can store the 10 years data, year, month and day
Output	Modbus(baud rate:19200,9600,4800,2400); 4-20mA, Pulse,(default 2ml/pulse); Lora,NB-Iot
Power supply	DC3.6V(disposable lithium batteries) ≥ 15 years
Pipe range	DN50-DN300
IP Grade	IP68
Accuracy class	Class 1
Process connection	Flange

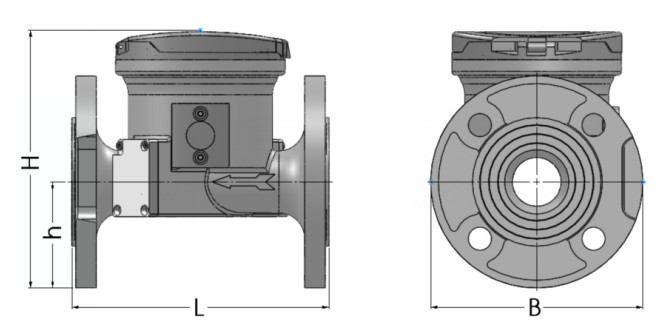

Dimension:

Types		Ultrawater
Nominal Diameter	(mm)	50	65	80	100	150	200	250	300
	(inch)	2	25	3	4	6	8	10	12
L- pipe length (mm)		200	200	225	250	300	350	449	499
B- width (mm)		165	185	200	220	285	340	406	489
H- height (mm)		194	210	210	223	282	332	383	456
h- height (mm)		40	90	90	103	140	165	203	245
Weight (mm)		9	11.5	13	15	32	45	68	96

Accuracy Curve
IP68 High Accuracy Double Channels Ultrasonic Water Meter

Download datasheet Ultrawater datasheet.pdf
