    Portable Flow Measurement With IP68 Sensor

    Ask Lasest Price
    Brand Name : Lanry
    Model Number : TF1100-EP
    Price : US $108.00 - 1800.00 / Unit
    Supply Ability : 1000 Unit/Units per Week Portable Doppler Ultrasonic Flow Meter
    • Product Details
    • Company Profile

    Portable Flow Measurement With IP68 Sensor

    Portable Flow Measurement With IP68 Sensor Product Description
    Portable Flow Measurement With IP68 Sensor

    Portable Flow Measurement With IP68 Sensor is a professional portable flow measurement product. It is installed outside the sensor tube, no need to cut off the current, the tube is broken, the installation is quick, the verification and maintenance is convenient. Three pairs of sensors, large, small and medium, can almost measure common pipes of different diameters. In addition, its optional thermal energy measurement capability enables it to perform a complete analysis of thermal energy use at any facility. The SENSOR's IP68 design has the highest dustproof and water-proof rating and can be used in harsh environments. It is widely used in water supply and drainage, hvAC, building energy conservation, oil chemical industry, metallurgy and other fields.
    Portable Flow Measurement With IP68 Sensor Features
    The Professional Products Portable Flow Measurement
    1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
    2. Wide liquid temperature range: -35℃~200℃.
    3. Data logger function.
    4. 50 hours battery(rechargeable), back-lit 4 lines display.
    5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

    6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.

    7. The heat measurement function by donfiguring with paired temperature sensors.

    Portable Flow Measurement With IP68 Sensor Application

    Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
    Petrochemical industry
    Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
    Refrigeration and air conditioning systems
    Food , beverage and pharmaceutical industry
    Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
    Metallurgy and mining applications
    Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

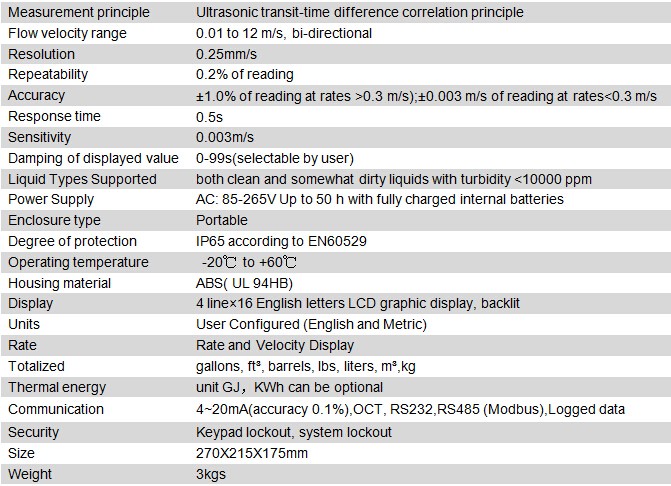

    Specifications :Transmitter

    Portable Flow Measurement With IP68 Sensor

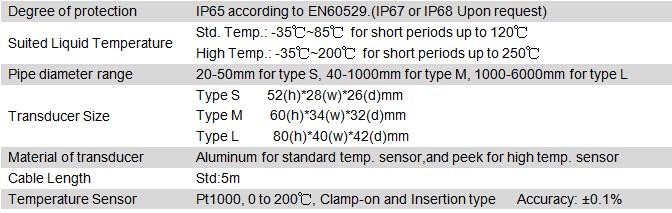

    Specifications :Transducer

    Portable Flow Measurement With IP68 Sensor

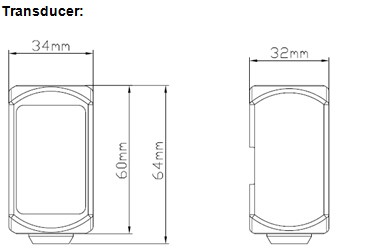

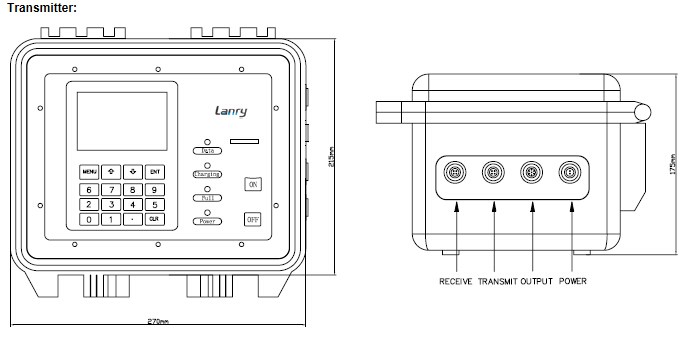

    Diamensional Sketches:

    Portable Flow Measurement With IP68 Sensor
    Portable Flow Measurement With IP68 Sensor

    S 48(h)*28(w)*28(d)mm
    M 60(h)*34(w)*32(d)mm
    L 80(h)*40(w)*42(d)mm

    Factory Equipment
    Portable Flow Measurement With IP68 Sensor
    Customer Visiting
    Portable Flow Measurement With IP68 Sensor
    Previous Exhibition
    Portable Flow Measurement With IP68 Sensor
    Certificate
    Portable Flow Measurement With IP68 Sensor
    Packing & Delivery

    The Professional Products Portable Flow Measurement

    With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

    Portable Flow Measurement With IP68 Sensor
    Portable Flow Measurement With IP68 Sensor
    Portable Flow Measurement With IP68 Sensor
    Portable Flow Measurement With IP68 Sensor

    Delivery

    Standard meter: 3-7 days

    Special meter: pls contact us

    Express, by air, by sea can be optional.
