Wall Mounted Ultrasonic Flow Meter 0.003m/S Sensitivity

Ask Lasest Price
Brand Name :	Lanry
Model Number :	TF1100-EC
Certification :	CE
Price :	Negotiable

Add to Cart

Product Details
Company Profile

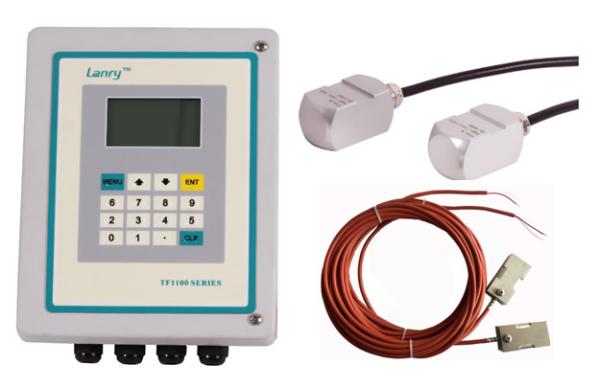

Wall Mounted Ultrasonic Flow Meter 0.003m/S Sensitivity

Wall Mounted Ultrasonic Flow Meter 0.003m/S Sensitivity

The transi-time ultrasonic meter is affected by the velocity of carrier medium. TF1100-EC non-invasive flow sensor ultrasonic Flowmeter is a kind of Flowmeter which uses ultrasonic wave to measure the flow rate of liquid-filled pipeline with high precision. It adopts the principle of ultrasonic cross-time difference correlation. The method has high precision and good numerical stability. The clamping ultrasonic flow sensor is mounted on the outer surface of the pipe for non-invasive and non-invasive flow measurement

Wall Mounted Ultrasonic Flow Meter 0.003m/S SensitivityFeatures:

1.High-temperature transducer is suitable to liquids of -35℃ ~ 200℃ 
2.Do not need to shut down the pipe flow when installing the transducers
3.User-friendly configuration
4.4-20mA, Relay and OCT outputs 
5.Accuracy: 2.0% Calibrated span

Wall Mounted Ultrasonic Flow Meter 0.003m/S Sensitivity Application

General
● Service and maintenance

● Energy efficiency audits

● Support of commissioning process and installation

● Replacement of defective devices

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

Specifications :Transmitter

Flow velocity range	0.01 to 12 m/s, bi-directional
Resolution	0.25mm/s
Repeatability	0.2% of reading
Resonse time	0.5s
Sensitivity	0.003m/s
Accuracy	±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Damping of displayed value	0-99s(selectable by user)
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply	AC: 85-265V DC: 24V/500mA
Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-20℃ to +60℃
Display	4 line×16 English letters LCD graphic display, backlit
Communication	4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data
Security	Keypad lockout, system lockout
Weight	2.4kg

Specifications :Transducer

Degree of protection	IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃ for short periods up to 120℃
Suited Liquid Temperature	High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range	20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
Transducer Size	Type S 52(h)28(w)26(d)mm
	Type M 60(h)34(w)32(d)mm
	Type L 80(h)40(w)42(d)mm
Material of transducer	Aluminium for standard temp. sensor,and peek for high temp. sensor
Cable Length	Std: 10m

Datasheet Download TF1100-EC transit-time wall-mounted ultrasonic flo...

Manual Download TF-1100-EC&EI heat meter Manual.pdf

Company

Lanry Instruments Corporation is the professional manufacturer of flow detection instruments, provides one package service of research and development, production, marketing and after-sales services. Engaged in the production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays a solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments (Shanghai) Co., Ltd. and Lanry instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.

Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

Wall Mounted Ultrasonic Flow Meter 0.003m/S Sensitivity

Delivery

High Accuracy Low Cost Wall Mount Flow Meter standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
