    Measuring Fluid Insertion Ultrasonic Flow Meter

    Ask Lasest Price
    Brand Name : Lanry
    Model Number : TF1100-EI
    Certification : ISO9000, CE, CPA,CMC
    Price : Negotiable
    Supply Ability : 1000 Unit/Units per
    • Product Details
    • Company Profile

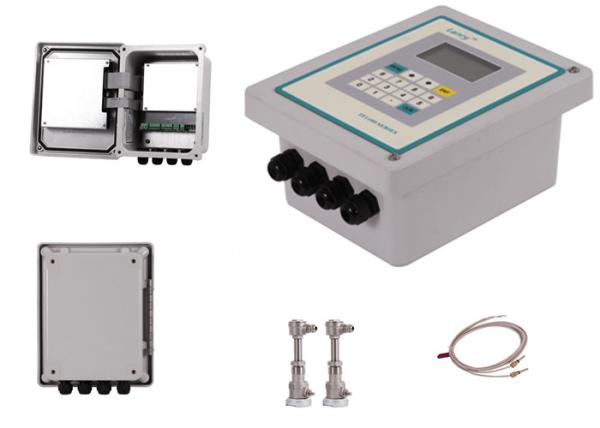

    Measuring Fluid Insertion Ultrasonic Flow Meter

    Measuring Fluid Transit-Time Ultrasonic Flowmeter TF1100-EI
    Wast Water and Sea Water Transit Time Insert type plug in Ultrasonic Flow meter TF1100-EI provides abundant capabilities for accurate liquid flow measurement from outside of a pipe. It utilizes state-of-the-art technologies on ultrasonic transmission /receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting technologies allow system to optimally adapt to different pipe materials automatically. Due to hot-tapped mounting of insertion transducers, there is no ultrasonic compound and coupling problem; Even though the transducers are inserted into pipe wall, they do not intrude into the flow, thus, do not generate disturbance or pressure drop to the flow. The insertion (wetted) type has the advantage of long-term stability and better accuracy.
    Measuring Fluid​ Insertion Transit-Time Ultrasonic Flowmeter TF1100-EI Features:
    1. No moving parts, no pressure drop, no maintenance
    2. For commonly used pipe materials and diameters from 20mm to over 6.0m.
    3. Data logger function for insertion ultrasonic flow meter
    4. Thermal energy measurement capability can be optional.
    5. High temp. Insertion transducers

    6. Wide bi-directional flow range of 0.01 m/s to 12 m/s..


    Measuring Fluid​ Insertion Transit-Time Ultrasonic Flowmeter TF1100-EI Application

    General

    ● Support of commissioning process and installation

    ● Performance and efficiency measurement

    ● Service and maintenance

    ● Replacement of defective devices
    - Evaluation and assessments
    - Capacity measurement of pumps
    - Monitoring of regulating valves

    ● Energy efficiency audits

    Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
    Refrigeration and air conditioning systems

    Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
    Petrochemical industry
    Food , beverage and pharmaceutical industry

    Specifications:Transmitter

    Measurement principleUltrasonic transit-time difference correlation principle
    Flow velocity range0.01 to 12 m/s, bi-directional
    Resolution0.25mm/s
    Repeatability0.2% of reading
    Accuracy±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
    Response time0.5s
    Sensitivity0.003m/s
    Damping of displayed value0-99s(selectable by user)
    Liquid Types Supportedboth clean and somewhat dirty liquids with turbidity <10000 ppm
    Power SupplyAC: 85-265V DC: 24V/500mA
    Enclosure typeWall-mounted
    Degree of protectionIP66 according to EN60529
    Operating temperature-20℃ to +60℃
    Housing materialFiberglass
    Display4 line×16 English letters LCD graphic display, backlit
    UnitsUser Configured (English and Metric)
    RateRate and Velocity Display
    Totalizedgallons, ft³, barrels, lbs, liters, m³,kg
    Thermal energyunit GJ,KWh can be optional
    Communication4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data
    Weight2.4kg

    Specifications:Transducer


    Degree of protectionIP67 or IP68 according to EN60529
    Suited Liquid TemperatureStd. Temp.: -35℃~85℃
    High Temp.: -35℃~150℃
    Pipe diameter rangeDN65-6000
    Transducer SizeType S Φ58*199mm
    Material of transducerStainless Steel
    Cable LengthStd: 10m
    Temperature SensorPt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%


    Packing & Delivery


    Insertion flow meters liquid measurement TF1100-EI wall mounted transit time type


    With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.
    Measuring Fluid Insertion Ultrasonic Flow MeterMeasuring Fluid Insertion Ultrasonic Flow MeterMeasuring Fluid Insertion Ultrasonic Flow Meter

    Delivery

    Insertion flow meters liquid measurement TF1100-EI wall mounted transit time type

    Standard meter: 3-7 days

    Special meter: pls contact us

    Express, by air, by sea can be optional.
