Rechargeable Battery Handheld clamp on Ultrasonic flow meter
TF1100-CH
Rechargeable Battery Handheld clamp on Ultrasonic flow meter
TF1100-CH can measure volumetric flow of liquid within closed
conduit, and there must be a certain amount of air bubbles or
suspended solids in liquid.
The Ultrasonic Flowmeter also can be available with 4-20mA, Relay
and OCT outputs. Liquid Types Supported Liquids containing 100ppm
of reflectors and at least 20% of the reflectors are larger than
100 micron.

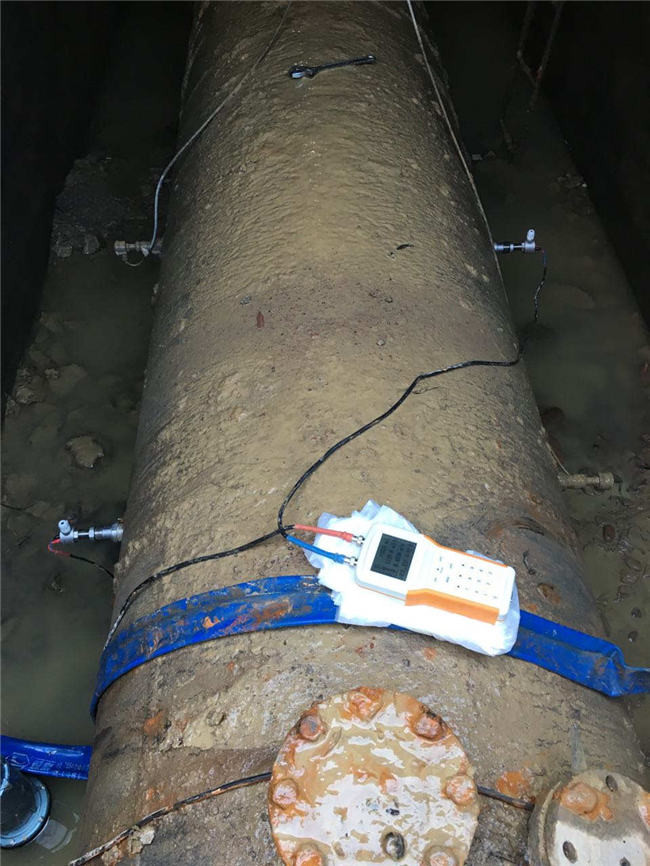

Handheld Ultrasonic Flowmeter Noninvasive Measure TF1100-CH works
on the transit-time method. The clamp-on ultrasonic transducers
(sensors) are mounted on the external surface of the pipe for
non-invasive and non-intrusive flow measurement of liquid and
liquefied gasses in fully filled pipe. Three pairs of transducers
are sufficient to cover the most common pipe diameter ranges.
User can use hand to hold as well as to operate the flow meter main
unit. This flexible and easy to use flow meter is the ideal tool
for the support of service and maintenance activities. It can also
be used for the control or even for the temporary replacement of
permanently installed meters.
Rechargeable Battery Handheld Ultrasonic Flow meter TF1100-CH with
clamp on sensor Features:
1.14 hours battery (rechargeable), back-lit 4 lines display.
2. Data logger function.
3. Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide
liquid temperature range: -35℃~200℃.
4. Works reliably in both clean and somewhat dirty liquids with
turbidity<10000ppm.
5. Lightweight and easily transportable in box.
6. Non-invasive transducers.
7. Can be used for mobile measurement, flow rate calibration, data
comparing, meters running status checking.
Applications:
Water and waste water industry - hot water, cooling water, potable
water, sea water etc.)
Petrochemical industry
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants),
heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak
detection, inspection, tracking and collection.
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems.
General
● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves
● Service and maintenance
● Replacement of defective devices
● Support of commissioning process and installation
Specifications: Transmitter
| Measurement principle | Ultrasonic transit-time difference correlation principle |
| Flow velocity range | 0.01 to 12 m/s, bi-directional |
| Resolution | 0.25mm/s |
| Repeatability | 0.2% of reading |
| Accuracy | ±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at
rates<0.3 m/s |
| Response time | 0.5s |
| Sensitivity | 0.003m/s |
| Damping of displayed value | 0-99s(selectable by user) |
| Liquid Types Supported | both clean and somewhat dirty liquids with turbidity <10000 ppm |
| Power Supply | AC: 85-265V Up to 14 h with fully charged internal batteries |
| Enclosure type | Handheld, Portable |
| Degree of protection | IP65 according to EN60529 |
| Operating temperature | -20℃ to +60℃ |
| Housing material | ABS( UL 94HB) |
| Display | 4 line×16 English letters LCD graphic display, backlit |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Size | 212*100*36mm |
| Weight | 0.5kg |
Specifications: Transducer
| Degree of protection | IP65 according to EN60529.(IP67 or IP68 Upon request) |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
| High Temp.: -35℃~200℃ for short periods up to 250℃ |
| Pipe diameter range | 20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L |
| Transducer Size | Type S 48(h)*28(w)*28(d)mm |
| Type M 60(h)*34(w)*33(d)mm |
| Type L 80(h)*40(w)*42(d)mm |
| Material of transducer | Aluminum for standard temp. sensor, and peek for high temp. sensor |
| Cable Length | Std: 5m |
Data sheet download TF1100-CH
transit-time handheld ultrasonic flowmet...
Manual Download TF1100-CH
transit-time handheld flowmeter Manual.p...
Dimensional Sketches
Transmitter:
Transducer:
