    Portable Ultrasonic Open Channel Flow Meter Good Numerical Stability

    Ask Lasest Price
    Brand Name : LANRY
    Model Number : DOF6000-P
    Certification : CE
    Price : Negotiable
    Supply Ability : 100pcs /week
    • Product Details
    • Company Profile

    Portable Ultrasonic Open Channel Flow Meter Good Numerical Stability

    Portable Open Channel Doppler Ultrasonic Flow meter DOF6000-P:
    Welcome to use new generation Doppler Open Channel ultrasonic flowmeter, please read the user manual carefully before using. The Doppler Open Channel ultrasonic flowmeter is designed to be used to the measurement of flow within open, partially-filled and free flow Channels for long-term flow measurement.
    Widely used in sewage plants, sewage outfall of enterprises and institutions, city sewer flows and irrigation Channels and so on.
    Portable Open Channel Flow meter DOF6000-P consists of flow calculator,
    and the integrated DOF6526 transducer to measure velocity and level at the same time.

    The flow calculator can display the velocity, level, flow rate and flow totalizer. The Ultrasonic
    Flow meter also can be available with 4-20mA, RS232, RS485 (Modbus) /GPRS and SD card
    logger outputs.

    Portable Open Channel Doppler Ultrasonicl Flow meter DOF6000-P can calculate the cross-sectional
    area of partially filled pipe, open channel stream or river, for stream or river, The Ultrasonic Flow meter
    can input up to 20 coordinate points describing the river's shape of cross section.It is suitable for
    variou applications.

    Portable Open Channel Doppler Ultrasonic Flow meter DOF6000-P features:

    1. Rechargeable battery can work up to 40 hours
    2. Measure flow in partially filled pipes and open channels.
    3. Display the velocity, level, flow rate and flow totalizer.
    4. No flume or weir required.
    5. 4-20mA, RS485 (Modbus) /GPRS outputs are available.
    6. 16GB SD card data logger can be optional.
    7. 20 coordinate points to describe the river’s shape of cross section.

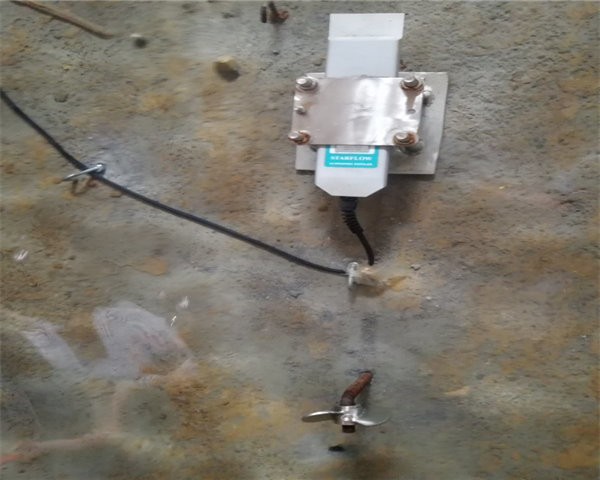

    Application
    Portable Ultrasonic Open Channel Flow Meter Good Numerical Stability

    Portable Open Channel Doppler Ultrasonic Flow meter DOF6000-P Specifications:
    Calculator:
    Enclosure typePortable
    Power Supply:85~265VAC
    Battery12VDC, 12Ah, Lithium battery, Over 40 hours working time on a full-charge
    Degree of protectionIP65
    Operating temperature-20℃ to +60℃
    Enclosure MaterialABS(Portable type)
    Outputs:4-20mA, RS485(Modbus), data logger, GPRS (optional)
    Size270L×215W×175H (mm)
    Weight3kg
    Data logger16GB
    Application rangePipe: 300-6000mm; Channel: 200-6000mm

    Specifications :DOF6526 sensor

    DOF6526 sensor:

    Velocity

    Range:

    21mm/s to 4500mm/s bi-directional


    Accuracy:

    2% of measured velocity


    Resolution:

    1mm/s

    Depth

    Range:

    0m to 3.0m or 0m to 6.0m


    Accuracy:

    ±0.25% of calibrated lower range


    Resolution

    H2 0-1m at 1mm, 1-2m at 2mm
    H5 0-2.5m at 2.5mm, 2.5-5m at 5mm

    Temperature

    Temperature:

    -17°C to 60°C


    Resolution:

    0.1°C

    Flow

    Computation:

    Flow rate, flow totalizer


    Channel type:

    Pipe, open channel, natural stream

    General

    Cable:

    15 meter


    Cable Options:

    User specified up to 100 meters


    Material:

    PVC body, stainless steel mounting plate


    Dimensions:

    290mm x 70mm x 30mm (L x W x H)


    Weight:

    1kg (2kg with 15m cable)

    Diamensional Sketches:

    Portable Ultrasonic Open Channel Flow Meter Good Numerical Stability
    Portable Ultrasonic Open Channel Flow Meter Good Numerical Stability
    Packing & Delivery

    Packing

    Portable Open Channel Doppler Ultrasonic Flow meter DOF6000-P
    With years of export experience along with excellent quality, advanced services and competitive
    prices, Lanry has won numerous customers' trust and support.With years of export experience
    along with excellent quality, advanced services and competitive prices, Lanry has won
    numerous customers' trust and support.

    Portable Ultrasonic Open Channel Flow Meter Good Numerical StabilityPortable Ultrasonic Open Channel Flow Meter Good Numerical Stability
    Portable Ultrasonic Open Channel Flow Meter Good Numerical StabilityPortable Ultrasonic Open Channel Flow Meter Good Numerical Stability

    Delivery

    Portable Open Channel Doppler Ultrasonic Flow meter DOF6000-P
    Standard meter: 3-7 days
    Special meter: pls contact us
    Express, by air, by sea can be optional.
