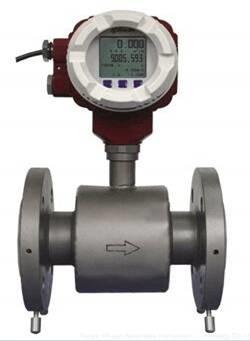

    Electromagnetic Flow Meter Digital Display For Conductive Fluids

    Ask Lasest Price
    Brand Name : Lanry
    Model Number : MF1010
    Certification : ISO9000, CE, CPA,CMC
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000pcs/month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    Electromagnetic Flow Meter Digital Display For Conductive Fluids

    High Accuracy Electromagnetic Flowmeter for DN10-DN1000 electromagnetic flow measurement:
    The Electromagnetic Flowmeter for DN10-DN1000 can be used to measure the flow of water, solutions (acidic, alkaline, salt), sewage, corrosive liquid, mud, ore pulp, paper pulp etc. with good performance in accuracy.
    Electromagnetic flowmeter is a kind of velocity flow meter which measures flow base on Faraday's electromagnetic induction law. It’s applicable for a vast range of industrial pipe diameter. The relationship between output signal and measured flow is linear.
    High Accuracy Electromagnetic Flowmeter for DN10-DN1000 electromagnetic flow measurement Features:
    1. Accuracy ±0.5%(0.1 - 10 m/s) of actual value, sizes from DN10 to DN1000, repeatability:0.2%.
    2. Capacitive touch buttons for keypad.
    3. Modbus RTU can be used with all the communication modules.

    Analogue outputs optional: Current 4-20 mA, Pulse, Relay(4pcs),Hart.

    Digital outputs (communication) optional: USB, RS232, RS485, .

    Data-logging on a standard micro-SD

    1. Digital communication RS485 allows communication between the transmitter and the sensor for up to 1000 m range.
    2. Power supply 12VDC /24VDC/90-250VAC or battery is available. Battery life up to 6 years (15 years with external battery pack).

    High Accuracy Electromagnetic Flowmeter for DN10-DN1000 electromagnetic flow measurement specification Transmitter:


    Measurable mediaConductive fluids
    Min. media electrical conductivity≥5us/cm or ≥20us/cm for demineralized water
    Flow range0.1 to 10m/s
    Display valuesActual flow(m3/h l/s, l/m, US.gal/min, UK.gal/min), volume(m3,l, US.gal, UK.gal),
    Positive, negative, total volume, sensor temperature
    Accuracy±0.5%(0.1-10m/s)
    Power supply options85-265VAC, 24VDC,12VDC or battery
    Communication protocolModbus RTU
    Analogue outputs4-20mA, Pulse, Relay(4pcs), Hart
    Digital outputs(communication)USB, RS232,RS485,GPRS
    Data loggerMicro SD card
    Flow directionBi-directional measurement
    Ambient temperature-20℃ to 60℃
    DisplayLCD, contrast setup
    Controls6pcs touch buttons (IP67 Transmitter); 6pcs optical buttons (IP68 Transmitter)
    Low flow cut-offOFF, 0.5%, 1%, 2%, 5%, 10% of flow on
    Housing materialAluminum
    Housing dimensionsø105*166mm
    Other featuresAuto-diagnostics, Muti-language options (English and Chinese), Test of excitation coils, Empty pipe detection, Zero flow adjustment and Flow simulator.
    sensor:
    Connection typesGB, DIN, ANSI, JIS
    Nominal size10-1000mm(1/2''-40'')
    Maximum nominal pressure4.0MPa(DN10-80), 1.6MPa(DN100-150), 1.0MPa(DN200-1000)
    Max. media temperature70℃(Rubber liner);130℃ PTFE (Remote version)
    Ambient temperature-20℃ to 60℃
    LinerRubber, PTFE or others on request
    ElectrodesSS 316L, other material on request
    Measuring tubeCarbon steel or Stainless steel can be optional
    Coils resistance80/100Ω
    Other featuresEarthing through 3rd; Automatic electrode cleaning

    Application:


    Products are widely applied in water industry (tap water, industrial water and sewage disposal), metallurgy, chemical industry, textile, papermaking, electric power, pharmacy, food industry, etc.

    High Accuracy Electromagnetic Flowmeter for DN10-DN1000 electromagnetic flow measurement:


    With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.


    Electromagnetic Flow Meter Digital Display For Conductive Fluids

    Delivery

    High Accuracy Electromagnetic Flowmeter for DN10-DN1000 electromagnetic flow measurement

    Standard meter: 3-7 days

    Special meter: pls contact us

    Express, by air, by sea can be optional.
