Chemical Clamp On Ultrasonic Flow Meter With Non Invasive Transducers

Ask Lasest Price
Brand Name :	Lanry
Model Number :	TF1100-EC
Certification :	CE
Price :	Negotiable

Add to Cart

Product Details
Company Profile

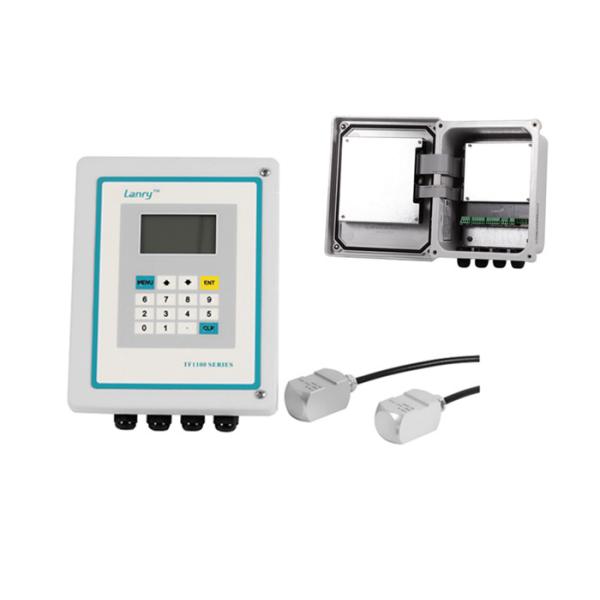

Chemical Clamp On Ultrasonic Flow Meter With Non Invasive Transducers

Transit-Time wall mounting type Ultrasonic Flow Meter TF1100-EC for Chemical industry

The protection degree of wall mounting Ultrasonic Flow Meter TF1100-EC is IP66 according to EN60529, and the power consumption dropped to very low, with a large screen 4- lines display full English or customized languages menu and easy to use, support 16G SD card data acquisition and serial data download.

Ultrasonic Flow Meter TF1100-EC works on the transit-time method. It has been proven that TF1100-EC is reliable and absolute matured achievement in high accuracy measurement. The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.

Transit-Time wall mounting type Ultrasonic Flow Meter TF1100-EC for Chemical industry Features

1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function for this Low cost flow meter .
4. Thermal energy measurement capability can be optional.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.

Application

General
● Energy efficiency audits	Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.
● Replacement of defective devices	Petrochemical industry
● Support of commissioning process and installation	Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
● Performance and efficiency measurement	Refrigeration and air conditioning systems
- Evaluation and assessments	Food , beverage and pharmaceutical industry
- Capacity measurement of pumps	Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
- Monitoring of regulating valves	Metallurgy and mining applications
● Service and maintenance	Water and waste water industry - hot water, cooling water, potable water, sea water etc.)

Specifications :Transmitter

Measurement principle	Ultrasonic transit-time difference correlation principle
Flow velocity range	0.01 to 12 m/s, bi-directional
Resolution	0.25mm/s
Repeatability	0.2% of reading
Accuracy	±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Resonse time	0.5s
Sensitivity	0.003m/s
Damping of displayed value	0-99s(selectable by user)
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply	AC: 85-265V DC: 24V/500mA
Enclosure type	Wall-mounted
Display	4 line×16 English letters LCD graphic display, backlit
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Thermal energy	unit GJ,KWh can be optional
Communication	4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data
Security	Keypad lockout, system lockout

Specifications :Transducer

Degree of protection	IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃ for short periods up to 120℃
Suited Liquid Temperature	High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range	20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L
Transducer Size	Type S 52(h)28(w)26(d)mm
	Type M 60(h)34(w)32(d)mm
	Type L 80(h)40(w)42(d)mm
Material of transducer	Aluminium for standard temp. sensor,and peek for high temp. sensor
Cable Length	Std: 10m

Datasheet Download TF1100-EC transit-time wall-mounted ultrasonic flo...

Manual Download TF-1100-EC&EI heat meter Manual.pdf

Company

Lanry Instruments Corporation is the professional manufacturer of flow detection instruments, provides one package service of research and development, production, marketing and after-sales services. Engaged in the production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays a solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments (Shanghai) Co., Ltd. and Lanry instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.

Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

Chemical Clamp On Ultrasonic Flow Meter With Non Invasive Transducers

Delivery

High Accuracy Low Cost Wall Mount Flow Meter standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
