TF1100-EI Insertion Type Ultrasonic Flow Meter Wide Liquid Temperature Range

Insertion flow meters liquid measurement TF1100-EI transit time type

There are two main types of ultrasonic flowmeters – transit-time and Doppler. Insertion flow meters liquid measurment TF1100-EI is a transit-time ultrasonic flowmeter, it has both a sender and a receiver. It sends two ultrasonic signals across a pipe at an angle – one with the flow and one against the flow. The meter then measures the “transit time” of each signal. When the ultrasonic signal travels with the flow, it travels faster than when it travels against the flow. The difference between the two transit times is proportional to flowrate.

Insertion flow meters liquid measurement TF1100-EI provides abundant capabilities for accurate liquid flow measurement from outside of a pipe. It utilizes state-of-the-art technologies on ultrasonic transmission /receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting technologies allow system to optimally adapt to different pipe materials automatically. Due to hot-tapped mounting of insertion transducers, there is no ultrasonic compound and coupling problem; Even though the transducers are inserted into pipe wall, they do not intrude into the flow, thus, do not generate disturbance or pressure drop to the flow. The insertion (wetted) type has the advantage of long-term stability and better accuracy.

Insertion flow meters liquid measurement TF1100-EI transit time type Features:

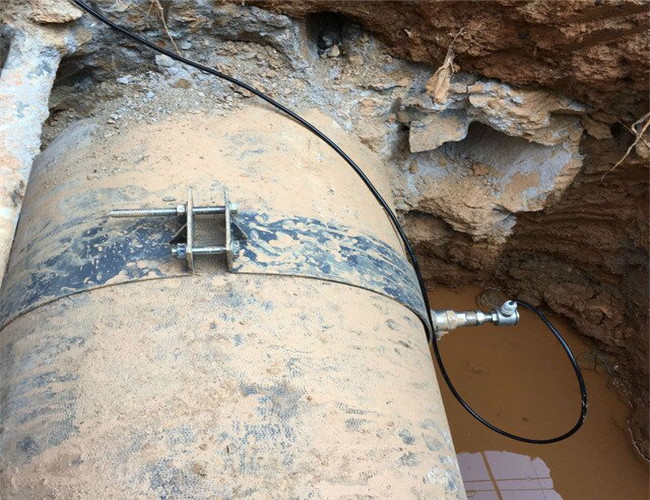

1. Hot-tapped installation, no pipe line flow interrupted
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function for insertion ultrasonic flow meter
4. Thermal energy measurement capability can be optional.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s..

Application

General
● Service and maintenance

● Replacement of defective devices

● Support of commissioning process and installation

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

● Energy efficiency audits

Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry

TF1100-EI Insertion Type Ultrasonic Flow Meter Wide Liquid Temperature Range

Specifications:Transmitter

Measurement principle	Ultrasonic transit-time difference correlation principle
Flow velocity range	0.01 to 12 m/s, bi-directional
Resolution	0.25mm/s
Repeatability	0.2% of reading
Accuracy	±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Response time	0.5s
Sensitivity	0.003m/s
Damping of displayed value	0-99s(selectable by user)
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply	AC: 85-265V DC: 24V/500mA
Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-20℃ to +60℃
Housing material	Fiberglass
Display	4 line×16 English letters LCD graphic display, backlit
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Thermal energy	unit GJ,KWh can be optional
Communication	4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data
Security	Keypad lockout, system lockout
Weight	2.4kg

Specifications:Transducer

Degree of protection	IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃
Suited Liquid Temperature	High Temp.: -35℃~150℃
Pipe diameter range	DN65-6000
Transducer Size	Type S Φ58*199mm
Material of transducer	Stainless Steel
Cable Length	Std: 10m
Temperature Sensor	Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%

Datasheet Download TF1100-EI transit-time insertion ultrasonic flowm...

Manual Download TF-1100-EC&EI heat meter Manual.pdf

Packing & Delivery

Insertion flow meters liquid measurement TF1100-EI wall mounted transit time type

With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support. With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support.

TF1100-EI Insertion Type Ultrasonic Flow Meter Wide Liquid Temperature Range

Delivery

Insertion flow meters liquid measurement TF1100-EI wall mounted transit time type

Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
