Paper Slurry Flowmeter Doppler Ultrasonic Flow Meter Clamp On
Transducer DF6100-EC
The Doppler Ultrasonic Flow Meter Clamp On Transducer is our
product of many years of production experience, the advantages of a
variety of similar products, and for the development of a
convenient split it type ultrasonic level meter.
DF6100-EC Wall-mounted Doppler Ultrasonic Flow Meter is designed to
measure volumetric flow of liquid within closed conduit, the pipe
line must be full of liquids, and there must be a certain amount of
air bubbles or suspended solids in liquid. With the accurate
measurement, reliable work, beautiful appearance and other
advantages. Meanwhile, the power consumption dropped to very low,
with a large screen 4- lines display full English or customized
languages menu and easy to use, support SD card data acquisition
and serial data download.
The Doppler ultrasonic flow meter can display flow rate and flow
totalizer, etc., and is configured with 4-20mA, Relays for
Totalizer and Alarm outputs.
Paper Slurry Flowmeter Doppler Ultrasonic Flow Meter Clamp On
Transducer DF6100-EC Feartures:
1. Do not need to shut down the pipe flow when installing the
transducers
2. For dirty liquids, a certain amount of air bubbles or suspended
solids shall be contained
3. Excellent low flow rate measurement ability, low to 0.05m/s
4. It is suitable for pipe sizes ranging from 40 to 4000mm
5. Accuracy: 2.0% Calibrated span
6. User-friendly configuration
Specifications: Transmitter
| Measurement principle | Doppler ultrasonic |
| Accuracy | 0.5% -- 2.0% F.S. |
| Response time | 2-60s for optional |
| Flow Velocity Range | 0.05- 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the
reflectors are larger than 100 micron. |
| Degree of protection | IP66 according to EN60529 |
| Operating temperature | -20℃ to +60℃ |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total
(resettable) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
Specifications: Transducer
| Transducers Type | Clamp-on |
| Degree of protection | IP65. IP67 or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
| High Temp.: -35℃~200℃ for short periods up to 250℃ |
| Pipe diameter range | 25-4000 mm |
| Transducer Size | 60(h)*34(w)*32(d)mm |
| Cable Length | Std: 10m |

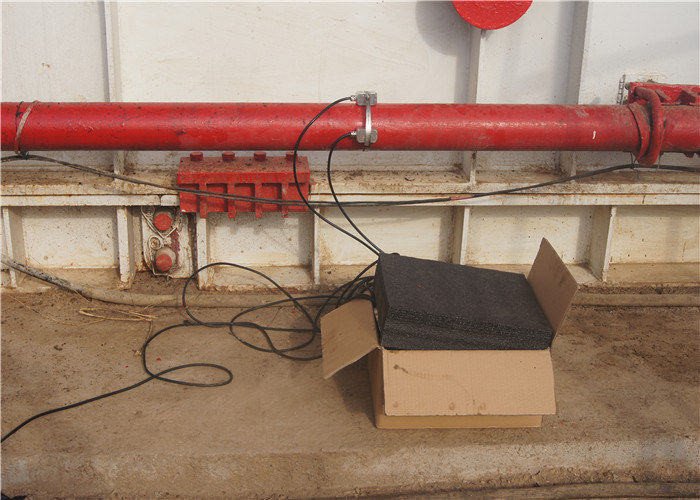

Application
Company
Company profile
Lanry Instruments is the professional manufacturer of flow detection instruments,
provides one package service of re-search and development,
production, marketing and after-sales services. Engaged in the
production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and
piled up a wealth of field application experience, which lays solid
foundation for the commitment to the promotion and innovation of
high-tech system solution.
Packing for Transportation
With years of export experience along with excellent quality,
advanced services and competitive prices, Lanry has won numerous customers' trust and support all over the world.
Delivery by Express
Smart oil level gauge Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea canbe optional.
