Wall-mounted Doppler Ultrasonic Flow Meter for Pipe Size 40 to
4000mm
The Ultrasonic Flowmeter DF6100 launched by Lanry combines years
experience in metering research and development, adopting
state-of-the-art technology and sophisticated production. It has
been proven that DF6100 is reliable and absolute matured
achievement in high accuracy measurement.

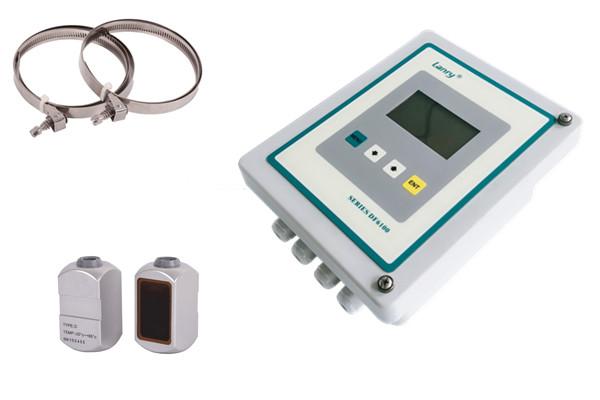

DF6100 series DF6100-EC Flow Meter consists of flow calculator,
and the integrated transducer to measure volumetric flow of liquid
within closed conduit, the pipe line must be full of liquids, and
there must be a certain amount of air bubbles or suspended solids
in liquid.
The flow calculator can display flow rate and flow totalizer, etc.,
and is configured with 4-20mA, Relays for Totalizer and Alarm
outputs.
Wall-mounted Doppler Ultrasonic Flow Meter for Pipe Size 40 to
4000mm Features:
1. It is suitable for pipe sizes ranging from 40 to 4000mm
2. For dirty liquids, a certain amount of air bubbles or suspended
solids shall be contained
3. 4-20mA, Relay Totalizer and Relay Alarm outputs
4. Do not need to shut down the pipe flow when installing the
transducers
5. Accuracy: 2.0% Calibrated span
6. Excellent low flow rate measurement ability, low to 0.05m/s
Specifications: Transmitter
| Measurement principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Repeatability | 0.2% of reading |
| Accuracy | 0.5% -- 2.0% F.S. |
| Flow Velocity Range | 0.05- 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the
reflectors are larger than 100 micron. |
| Degree of protection | IP66 according to EN60529 |
| Operating temperature | -20℃ to +60℃ |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Communication | 4-20mA,relays for Totalizer and alarm output |
| Size | 244(h)*196(w)*144(d)mm |
| Weight | 2.4kg |
Specifications: Transducer
| Transducers Type | Clamp-on |
| Degree of protection | IP65. IP67 or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
| Pipe diameter range | 25-4000 mm |
| Material of transducer | Stainless steel |
| Cable Length | Std: 10m |
