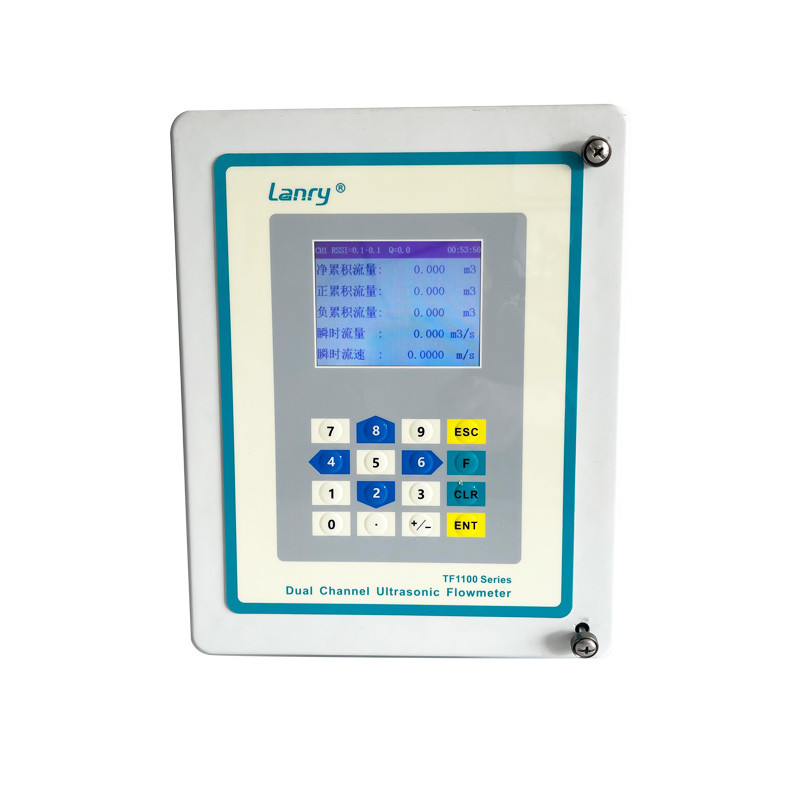

Dual Channel Clamp On Ultrasonic Flow Meter
TF1100-DC Dual-channel Wall-mounted Transit Time Ultrasonic Flowmeter works on the transit-time method. The clamp-on ultrasonic
transducers (sensors) are mounted on the external surface of the
pipe for non-invasive and non-intrusive flow measurement of liquid
and liquefied gasses in fully filled pipe. Two pairs of transducers are sufficient to cover the most common
pipe diameter ranges. In addition, its optional thermal energy
measurement capability makes it possible to carry out a complete
analysis of thermal energy usage in any facility.
This flexible and easy to use flow meter is the ideal tool for the
support of service and maintenance activities. It can also be used
for the control or even for the temporary replacement of
permanently installed meters.
Features
- Dual channel non-invasive transducers to ensure high accuracy 0.5% of the flow meter.
- Easy to install, cost effective, and require no pipe cutting or processing interrupt.
- Wide liquid temperature range: -35℃~200℃.
- Data logger function.
- Aluminum or Stainless steel SUS304 sensors for your optional.
- Thermal energy measurement capability can be optional.
- For commonly used pipe materials and diameters from 20mm to 6.0m.
- Wide bi-directional flow range of 0.01 m/s to 15 m/s.
Specification
Measurement principle | Ultrasonic transit-time difference correlation principle |
| Flow velocity range | 0.01 to 15 m/s, bi-directional |
| Resolution | 0.1mm/s |
| Repeatability | 0.15% of reading |
| Accuracy | ±0.5% of reading at rates >0.3 m/s);±0.003 m/s of reading at
rates<0.3 m/s |
| Response time | 0.5s |
| Sensitivity | 0.001m/s |
| Damping of displayed value | 0-99s(selectable by user) |
| Liquid Types Supported | both clean and somewhat dirty liquids with turbidity <10000 ppm |
| Power Supply | AC: 85-265V DC: 24V/500mA |
| Enclosure type | Wall-mounted |
| Degree of protection | IP66 according to EN60529 |
| Operating temperature | -10℃ to +60℃ |
| Housing material | Fiberglass |
| Display | 4.3’’ color LCD 5 lines display, 16 keys |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Thermal energy | unit GJ,KWh can be optional |
| Communication | 4~20mA(accuracy 0.1%),OCT, Relay, RS485 (Modbus),data logger |
| Security | Keypad lockout, system lockout |
| Size | 244*196*114mm |
| Weight | 2.4kg |
| Degree of protection | Standard IP65; IP67, IP68 can be optional |
| Suited Liquid Temperature | -35℃~200℃ |
| Pipe diameter range | 20-50mm for type B, 40-4000mm for type A |
| Transducer Size | Type A 46(h)*31(w)*28(d)mm |
| Type B 40(h)*24(w)*22(d)mm |
| Material of transducer | Aluminum or Stainless steel SUS304 |
| Cable Length | Std:10m |
| Temperature Sensor | Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1% |
Application
Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants), heat energy
boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.
